16 x alloy wheel M12 x 1.25 Wobble bolts, Wobbly bolts,Variable bolts, Variable PCD bolts fit Fiat
Item specifics
Condition: | New | Brand: | GWA, A39LE variation conversion bolts |
Seat Type: | Taper | Country/Region of Manufacture: | CN |
Reference OE/OEM Number: | 4x98 to 4x100 5x98, 5x108, 5x110 to 5x100, 5x106, 5x112 | MPN: | SONB1000A1035 |
Unit Quantity: | 16 | Hex Size: | 17mm |
Type: | Variable PCD bolts | Thread Size: | 12x1.25mm |
Manufacturer Part Number: | SONB1000A1035 | Thread Length: | 29mm |
16 x alloy wheel M12 x 1.25 Wobble bolts, Wobbly bolts,Variable bolts, Variable PCD bolts fit Fiat

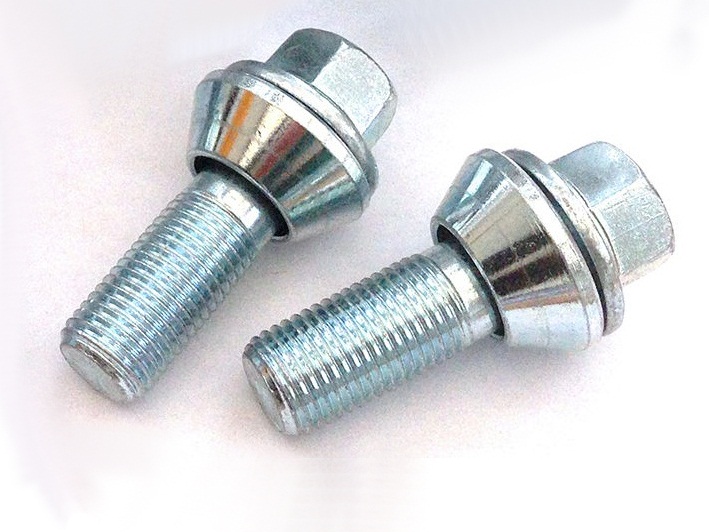

This listing is for a set of 16 brand new wheel bolts.
These bolts are top quality high tensile carbon steel which is bright zinc plated to resist rust.
Variation/variable/wobbly bolts are for use with wheels where the PCD does not match the stud pattern of the hub. They give a 2mm tolerance eg 5x108 to 5x110.
If using these bolts with Audi, Seat, Skoda or VW it is recommended that you check the wheels as the original alloys will be radius seat.
Specifications
Thread size: M12 x 1.5
Thread length: 29mm
Overall bolt width: 26mm
Overall bolt length: 57mm (inc the head)
Seat type: Taper (Cone shaped)
Bolt material: Heat treated carbon alloy steel
Bolt finish: Bright zinc plated
Spanner size: 17mm Hex
Please note these are taper seat, check your wheels as some of the original manufacturer wheels might have radius and these will not be suitable.
FAQ's
Below are some of the common questions we get with some answers
What is Hex?
The Hex refers to the size of the nut/bolt head and therefore the corresponding size of the socket used with the wheel brace.
What is the seat?
The seat is the part of the nut/bolt that comes into contact with the wheel in the bolt holes.
There are 3 main styles of seat
Tapered - usually 60 degrees, this looks like a cone
Radius - this looks like a bowl
Flat - this is usually a flat washer.
What is M12 x 1.25?
This is the size of the thread.
The M number is the diameter of the thread and the 1.25 is the size of the pitch between each individual threads.
So an M12 x 1.25 is a 12mm diameter by 1.25mm thread.
There are 4 common sizes
M12 x1.25
M12 x 1.5
M14 x 1.25
M14 x 1.5
How do I know what nuts or bolts I need?
We have tried to make it as easy as possible for you to identify the correct nuts/bolts for your car.
If the compatibility info of this listing is states for your car then this will be the standard fitment you require.
If you are still not sure please feel free to call us on and a member of our team will be happy to help.
